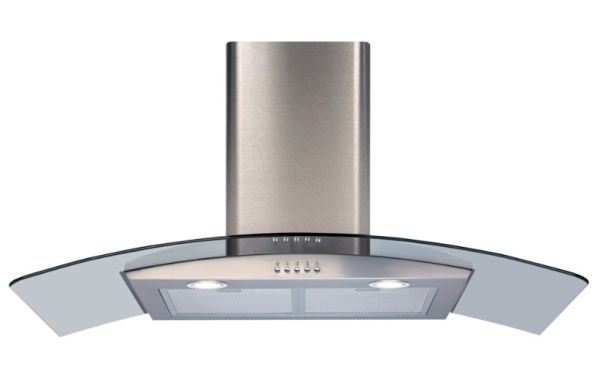

CDA ECP92SS Curved glass extractor
SKU
ECP92SS
Key Features
- ManufacturerCDA
- Product ModelECP92SS
- Product TypeHoods
- Product Warranty2 Years
- Appliance Width90cm
£312.07
Call for Availability
The CDA ECP92SS has a striking curved glass stainless steel design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.
Features
Ducted/re-circulating installation
3 speeds
Type of grease filter: Aluminium grease filters
Available in
Stainless steel
Black
Optional Accessories
Ducting kit code: 120mm, AED 510/560
Ducting kit code: 150mm, AED 610/660
Technical Specification
Required height over gas hobs: 700 mm (min)
Required height over electric hobs: 600 mm (min)
Power supply: 3 A
Mains lead length: 1 m
Mains lead rating: H05VV-F m
Protection class: Class I
Outlet diameter: 120mm/150mm mm
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Extraction Rates And Noise
Extraction rate: 377 m3/hr
Noise level: 60 dBA
Extraction rate at first speed: 224 m³/hr
Extraction rate at second speed: 315 m³/hr
Extraction rate at third speed: 377 m³/hr
Noise level at first speed: 51 dBA
Noise level at second speed: 58 dBA
Noise level at third speed: 60 dBA
Filters
Number of layers: 4
Number of grease filters: 1
Number of charcoal filters (optional): 1
Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
Fitting Notes
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Misc Information
WEEE Category: 01
Features
Ducted/re-circulating installation
3 speeds
Type of grease filter: Aluminium grease filters
Available in
Stainless steel
Black
Optional Accessories
Ducting kit code: 120mm, AED 510/560
Ducting kit code: 150mm, AED 610/660
Technical Specification
Required height over gas hobs: 700 mm (min)
Required height over electric hobs: 600 mm (min)
Power supply: 3 A
Mains lead length: 1 m
Mains lead rating: H05VV-F m
Protection class: Class I
Outlet diameter: 120mm/150mm mm
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Extraction Rates And Noise
Extraction rate: 377 m3/hr
Noise level: 60 dBA
Extraction rate at first speed: 224 m³/hr
Extraction rate at second speed: 315 m³/hr
Extraction rate at third speed: 377 m³/hr
Noise level at first speed: 51 dBA
Noise level at second speed: 58 dBA
Noise level at third speed: 60 dBA
Filters
Number of layers: 4
Number of grease filters: 1
Number of charcoal filters (optional): 1
Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
Fitting Notes
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Misc Information
WEEE Category: 01
| Delivery_estimate | Call for Availability |
|---|---|
| Manufacturer | CDA |
| availability | Out Of Stock |
| Colour | Stainless Steel |
| Energy Rating | D Rated New |
| Product Type | Hoods |
| Standard Warranty | 2 Years |
| Noise Level(dB) | 60 |
| Width (cm) | 90 |
| Appliance Width | 90cm |
| Delivery | Local delivery will be same day if purchased before 11AM and if there are delivery slots available, national delivery would be delivered within 3 - 7 days and we will be in contact with a delivery date once the order has been processed |
| Special Offer 12 | Offer 3 |
